PA6 (Nylon 6): Types, Properties, and Material Selection Guide
At Wohua Plastic, PA6 (Polyamide 6) is one of our most frequently specified engineering plastics. Known for its excellent mechanical strength, toughness, and abrasion resistance, PA6 is a versatile material used across automotive, industrial machinery, electronics, and consumer goods.
However, not all PA6 is the same. Depending on the modification and reinforcement, PA6 can be tailored to meet specific application requirements. This article breaks down the major types of PA6 available in the market.
1. What Is PA6?

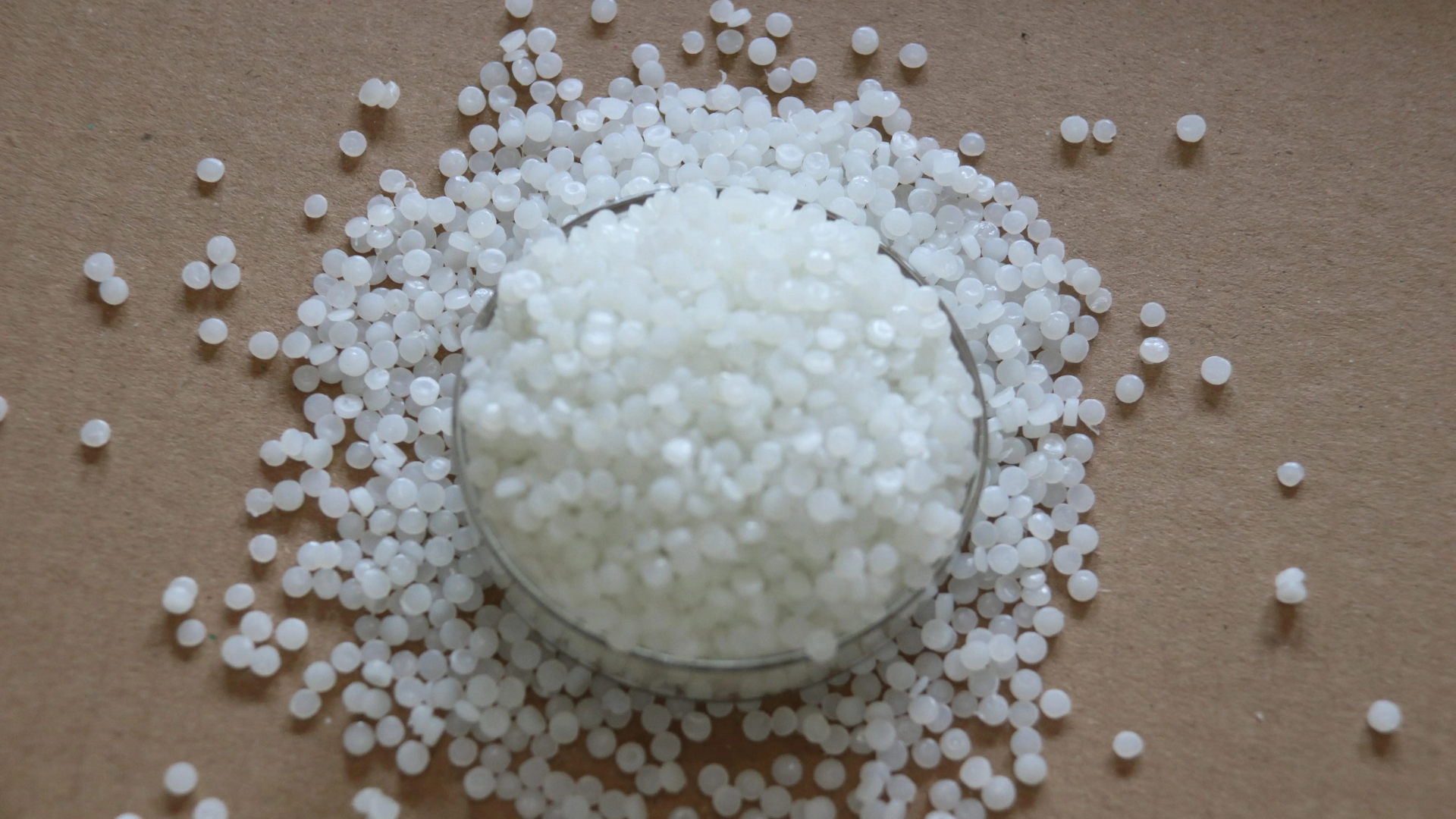

PA6 is a semi-crystalline engineering thermoplastic produced by ring-opening polymerization of caprolactam. It offers:
High tensile strength and impact resistance
Good wear and abrasion resistance
Excellent fatigue endurance
Low coefficient of friction
Good chemical resistance to oils, fuels, and alkalis
Limitations: PA6 absorbs moisture, which can affect dimensional stability and mechanical properties. However, this can be managed through proper design and material selection.
2. Main Types of PA6
PA6 can be classified into two primary categories: unreinforced (neat) and reinforced/modified. Below is a detailed breakdown.
2.1 Unreinforced PA6 (Neat PA6)
This is the base material without any fillers or reinforcements. It offers a balanced combination of properties at the lowest cost.
| Grade | Key Characteristics | Typical Applications |
|---|---|---|

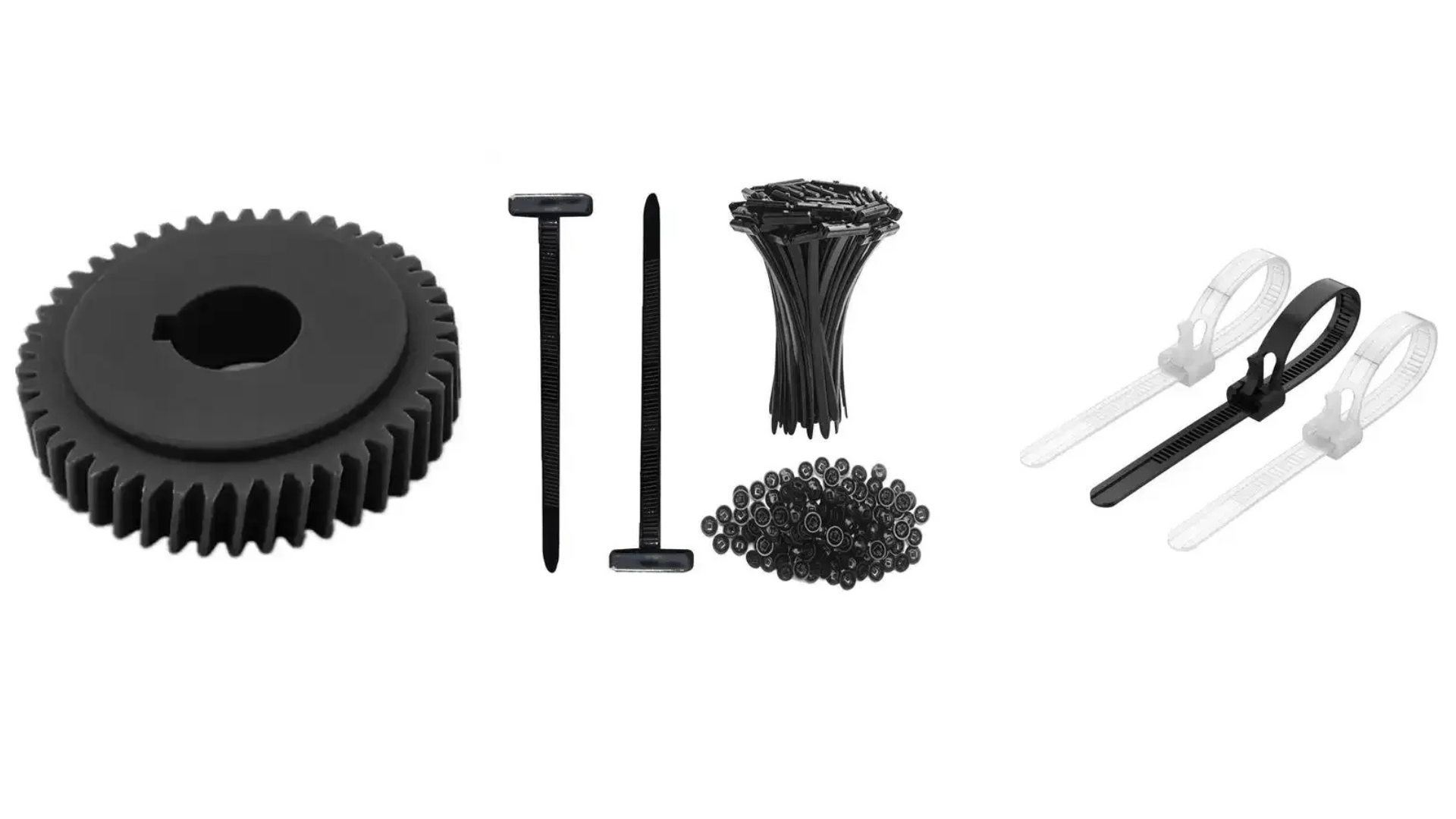

| PA6 General Purpose | Standard viscosity, good flow, easy molding | Gears, housings, cable ties, fasteners |
| PA6 High Viscosity | Higher molecular weight, improved toughness, better for extrusion | Films, monofilaments, tubing, sheets |
| PA6 Low Viscosity | Excellent flow for thin-wall or complex parts | Connectors, small precision components |
2.2 Glass-Fiber Reinforced PA6 (PA6-GF)
Glass fibers are added to significantly increase stiffness, strength, and heat deflection temperature (HDT).
| Glass Fiber Content | Key Properties | Typical Applications |
|---|---|---|
| PA6-GF15 (15% GF) | Moderate increase in strength and stiffness | Automotive brackets, tool housings |
| PA6-GF30 (30% GF) | Most common grade; high strength, excellent dimensional stability | Engine covers, fan blades, structural parts |
| PA6-GF50 (50% GF) | Maximum stiffness and heat resistance | High-load industrial components |
Trade-off: Increased surface roughness and reduced impact strength compared to unreinforced PA6.
2.3 Impact-Modified PA6 (PA6-IM)
Tougheners (such as elastomers or rubber modifiers) are added to improve impact resistance, especially at low temperatures or dry conditions.
| Grade | Key Properties | Typical Applications |
|---|---|---|

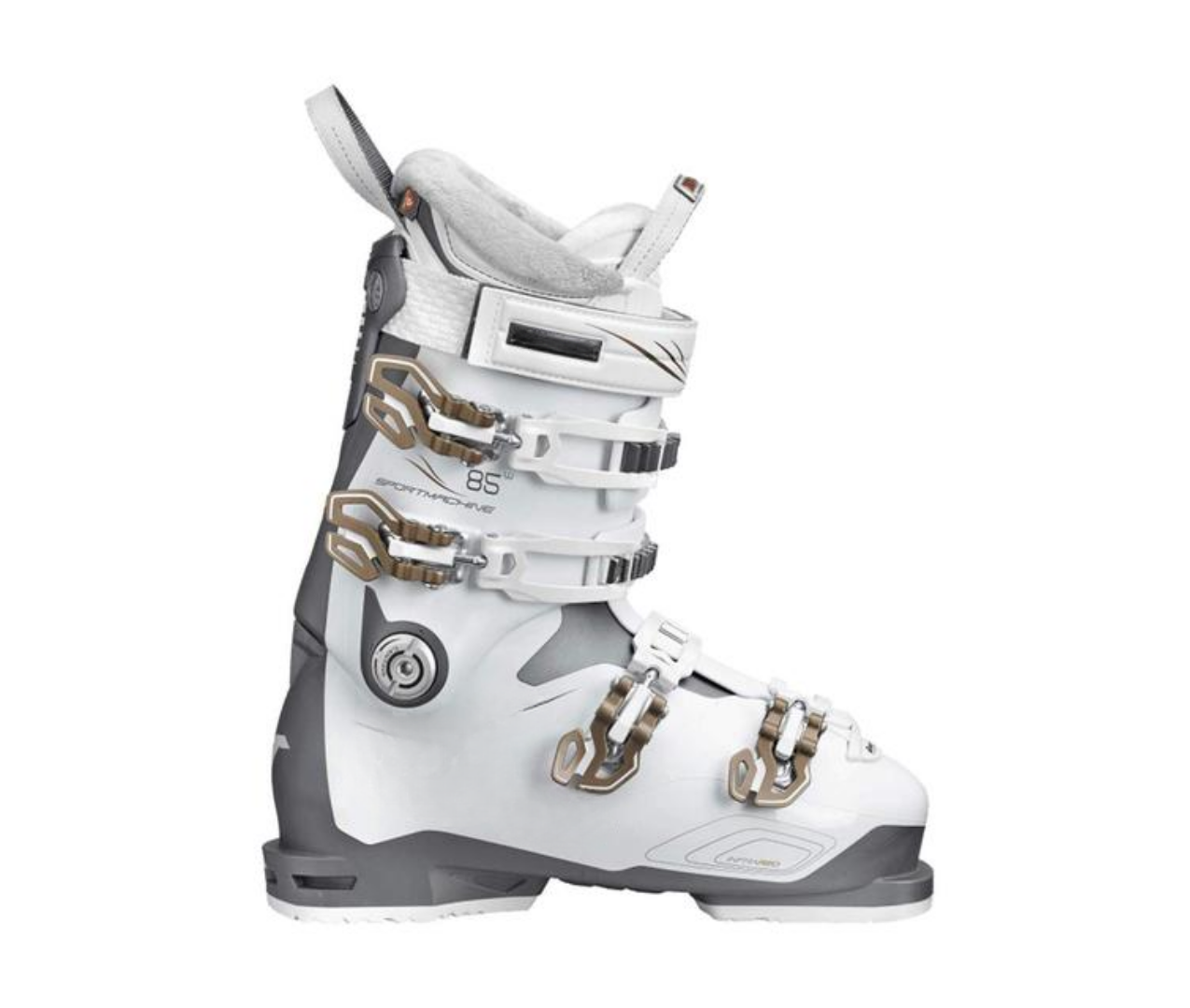

| PA6 Super Tough | Very high impact strength, even at -40°C | Ski boots, sporting goods, protective equipment |
| PA6 Low-Temperature Grade | Maintains ductility in cold environments | Automotive clips, outdoor components |
2.4 Heat-Stabilized PA6 (PA6-HS)
Heat stabilizers are added to prevent thermal degradation during long-term exposure to elevated temperatures (typically 120–150°C).
| Grade | Key Properties | Typical Applications |
|---|---|---|
| PA6 Heat Stabilized | Retains mechanical properties under continuous heat | Under-hood automotive parts, electrical components near heat sources |
2.5 UV-Stabilized PA6 (PA6-UV)
UV stabilizers are added to resist degradation from sunlight exposure, preventing surface chalking, discoloration, and embrittlement.
| Grade | Key Properties | Typical Applications |
|---|---|---|

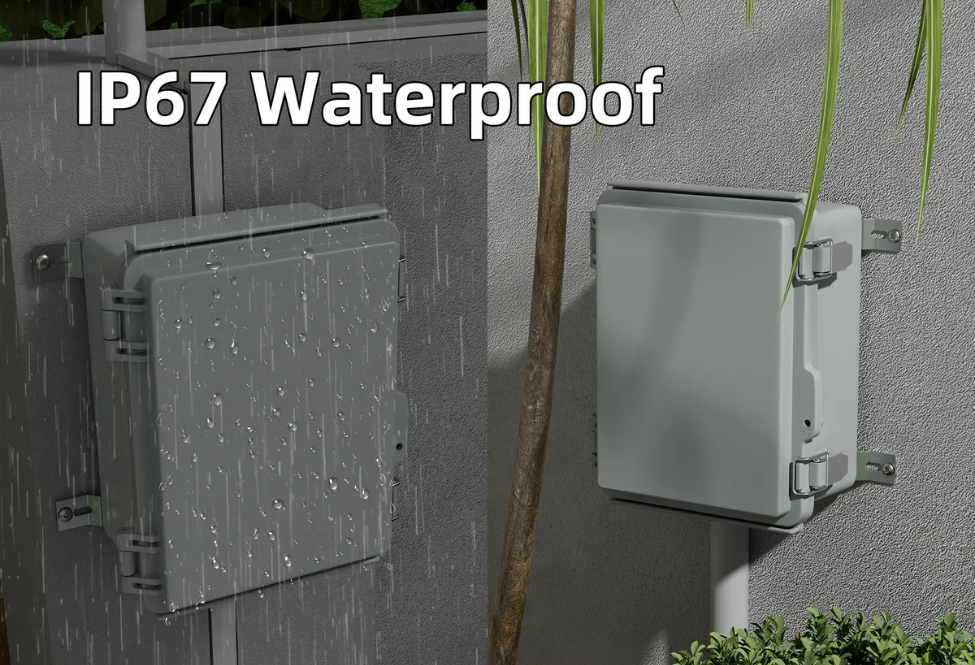

| PA6 UV Stabilized | Excellent weatherability for outdoor use | Outdoor electrical enclosures, solar panel clips, agricultural components |
2.6 Lubricated / Wear-Resistant PA6 (PA6-WR)
Internal lubricants (such as PTFE, molybdenum disulfide, or silicone) are added to reduce friction and improve wear resistance.
| Additive | Key Properties | Typical Applications |
|---|---|---|

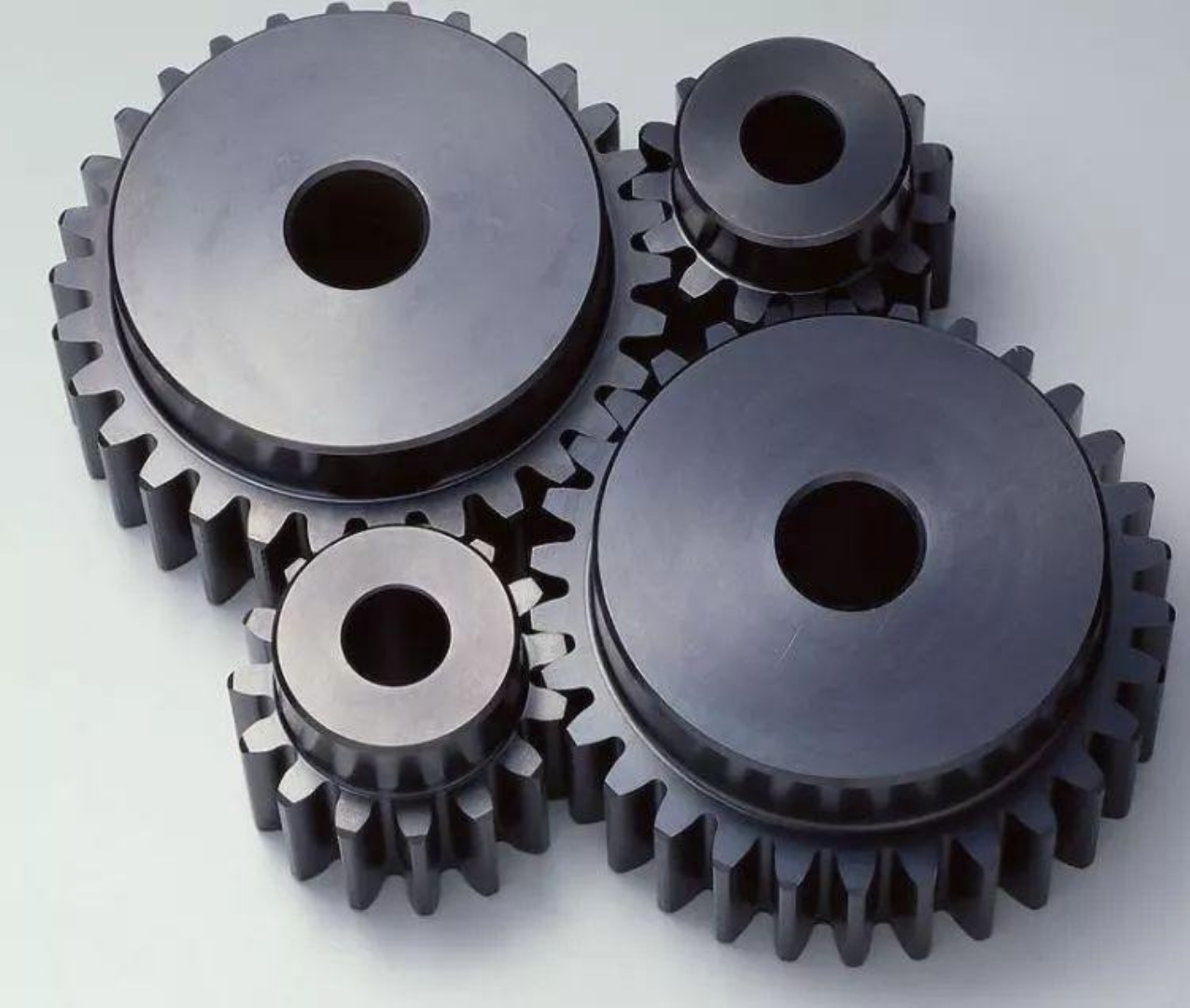

| PA6 + MoS₂ | Reduced friction, improved surface hardness | Gears, bearings, sliding components |
| PA6 + PTFE | Very low coefficient of friction | High-speed moving parts, bushings |
| PA6 + Oil | Internally lubricated for continuous motion | Self-lubricating bearings |
2.7 Flame-Retardant PA6 (PA6-FR)
Flame retardants are added to meet UL94 ratings (typically V-0 or V-2) for electrical and electronic applications.
| Grade | Key Properties | Typical Applications |
|---|---|---|

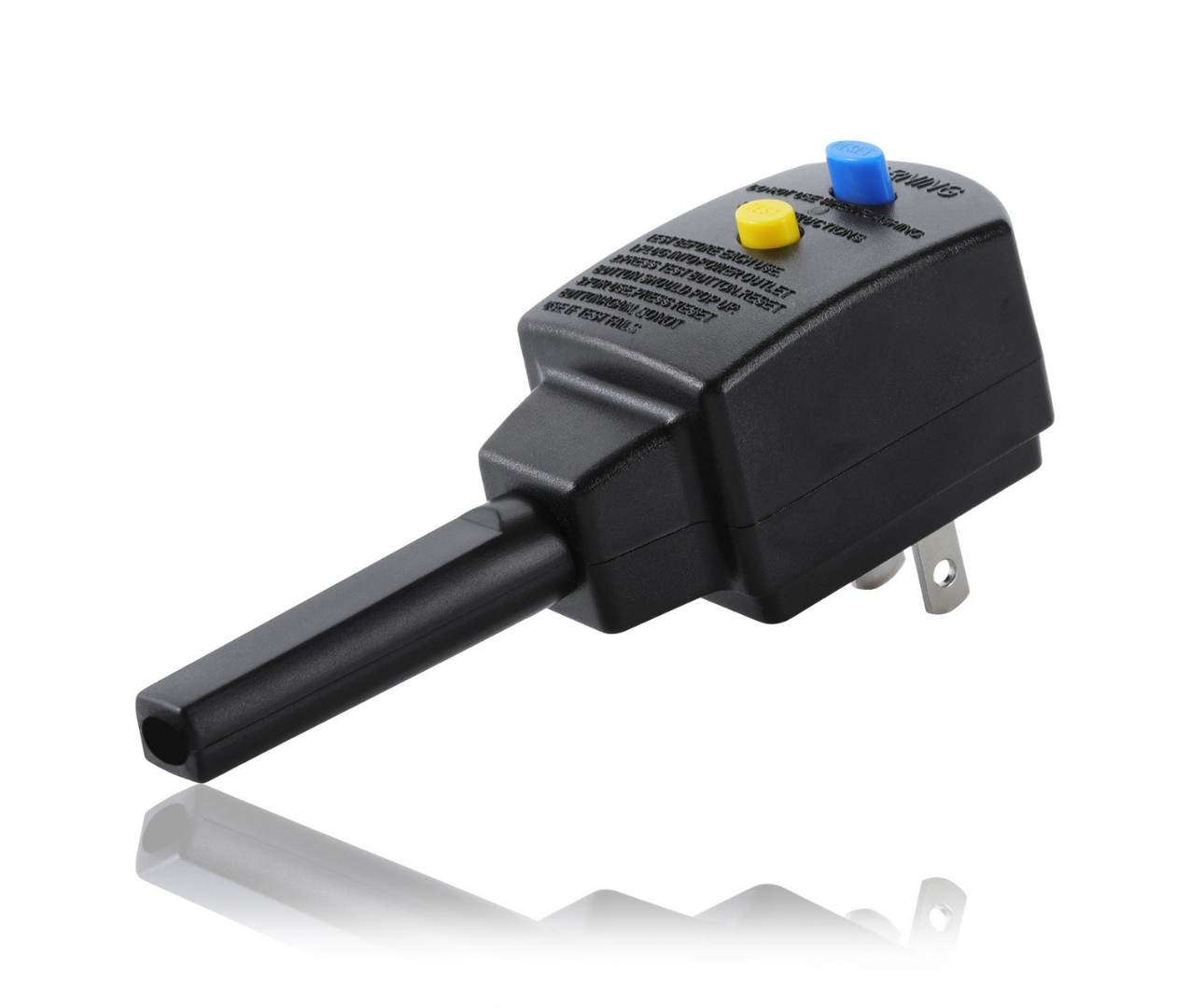

| PA6 V-0 (Halogenated) | Excellent flame resistance, cost-effective | Connectors, relays, circuit breakers |
| PA6 V-0 (Halogen-Free) | Environmentally friendly, low-smoke | Green electronics, public infrastructure |
3. Comparison Summary Table
| PA6 Type | Key Benefit | Best For |
|---|---|---|
| Neat PA6 | Balanced properties, low cost | General-purpose parts |
| Glass-Fiber Reinforced | High stiffness, heat resistance | Structural components |
| Impact-Modified | High toughness, cold resistance | Protective equipment |

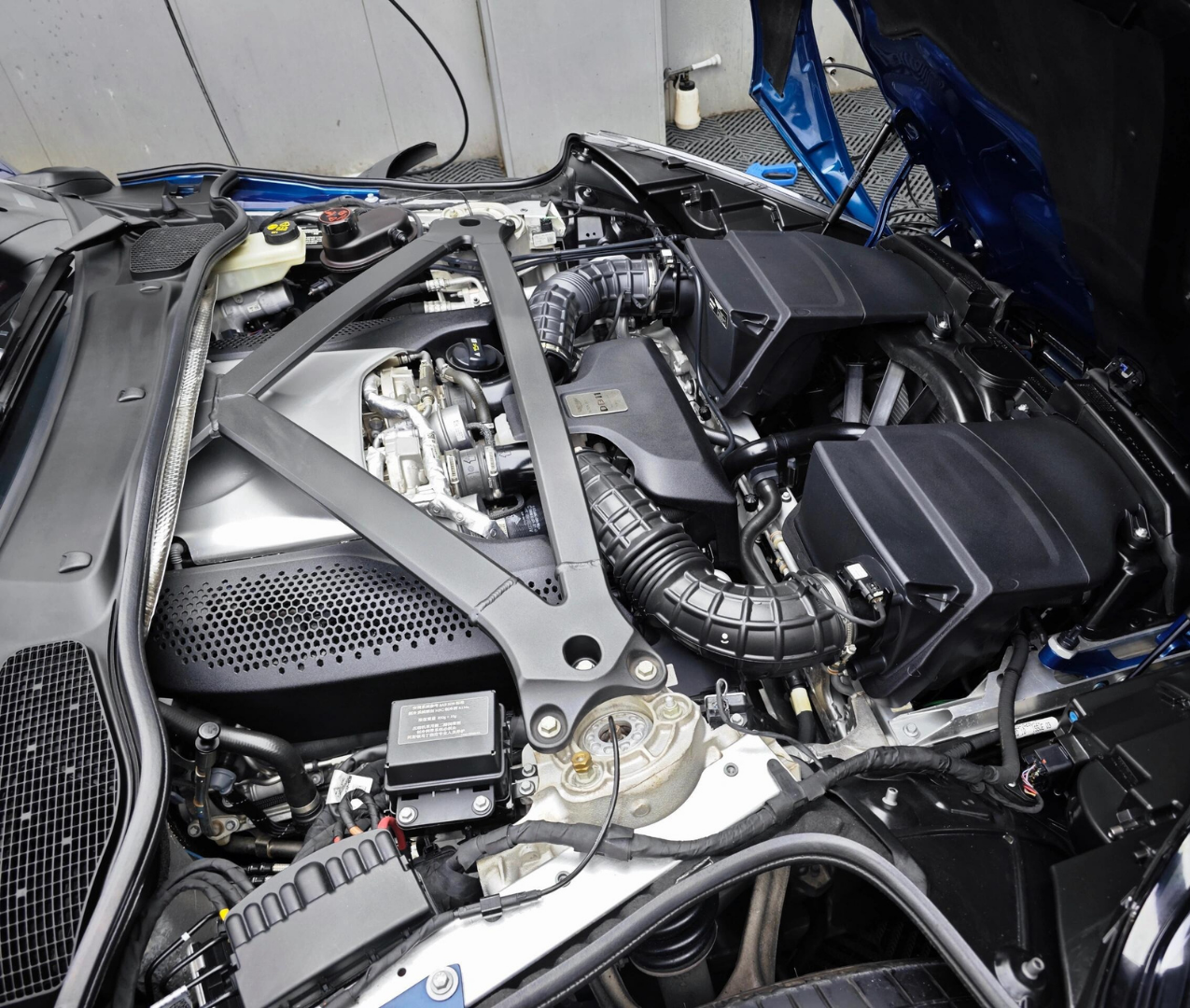

| Heat-Stabilized | Long-term heat resistance | Under-hood automotive |
| UV-Stabilized | Weather resistance | Outdoor applications |
| Lubricated / Wear-Resistant | Low friction, long wear | Moving parts, bearings |
| Flame-Retardant | Fire safety | Electrical components |
4. How to Choose the Right PA6 Type
When selecting a PA6 grade, consider the following four factors:
| Factor | Question to Ask |
|---|---|
| Mechanical load | Does the part need high strength (add GF) or high toughness (add IM)? |
| Thermal environment | Will it be exposed to continuous heat (add HS) or just room temperature? |
| Chemical/moisture exposure | Will it contact oils, fuels, or high humidity? |
| Regulatory requirements | Is UL94 flame rating, FDA food contact, or UV stability required? |
At Wohua Plastic, our technical team can help you match the exact PA6 modification to your application needs.
Conclusion
PA6 is a highly adaptable engineering plastic available in numerous modified forms—from unreinforced general-purpose grades to glass-filled structural materials, impact-modified tough grades, and specialty formulations for heat, UV, wear, or flame resistance.
Understanding these variations allows you to optimize part performance, manufacturing efficiency, and cost.
Need PA6 material recommendations?
Contact Wohua Plastic to discuss your application or request a technical datasheet.
