How to Select Engineering Plastics Based on Application Scenarios
Introduction
Choosing the right engineering plastic is not just about mechanical strength or temperature resistance. The optimal material depends heavily on the operating environment, load profile, chemical exposure, and regulatory requirements of your specific application.
At Wohua Plastics, we help OEMs and designers match performance-grade polymers to real-world scenarios. Below is a scenario-based guide to common engineering plastics.
1. High-Wear & Friction Applications (e.g., gears, bushings, conveyor components)
Scenarios: Moving parts in automation, printers, automotive actuators.
Requirements: Low friction coefficient, high wear resistance, dimensional stability.
| Material | Key Properties | Limitation |
|---|---|---|
| POM (Acetal) | High stiffness, low friction, excellent creep resistance | Poor UV resistance |
| PA66 (Nylon 66) | Tough, good wear with fillers (e.g., MoS₂, glass fiber) | Moisture absorption affects dimensions |
| UHMW-PE | Extremely low friction, impact resistant | Low heat deflection (~80°C) |

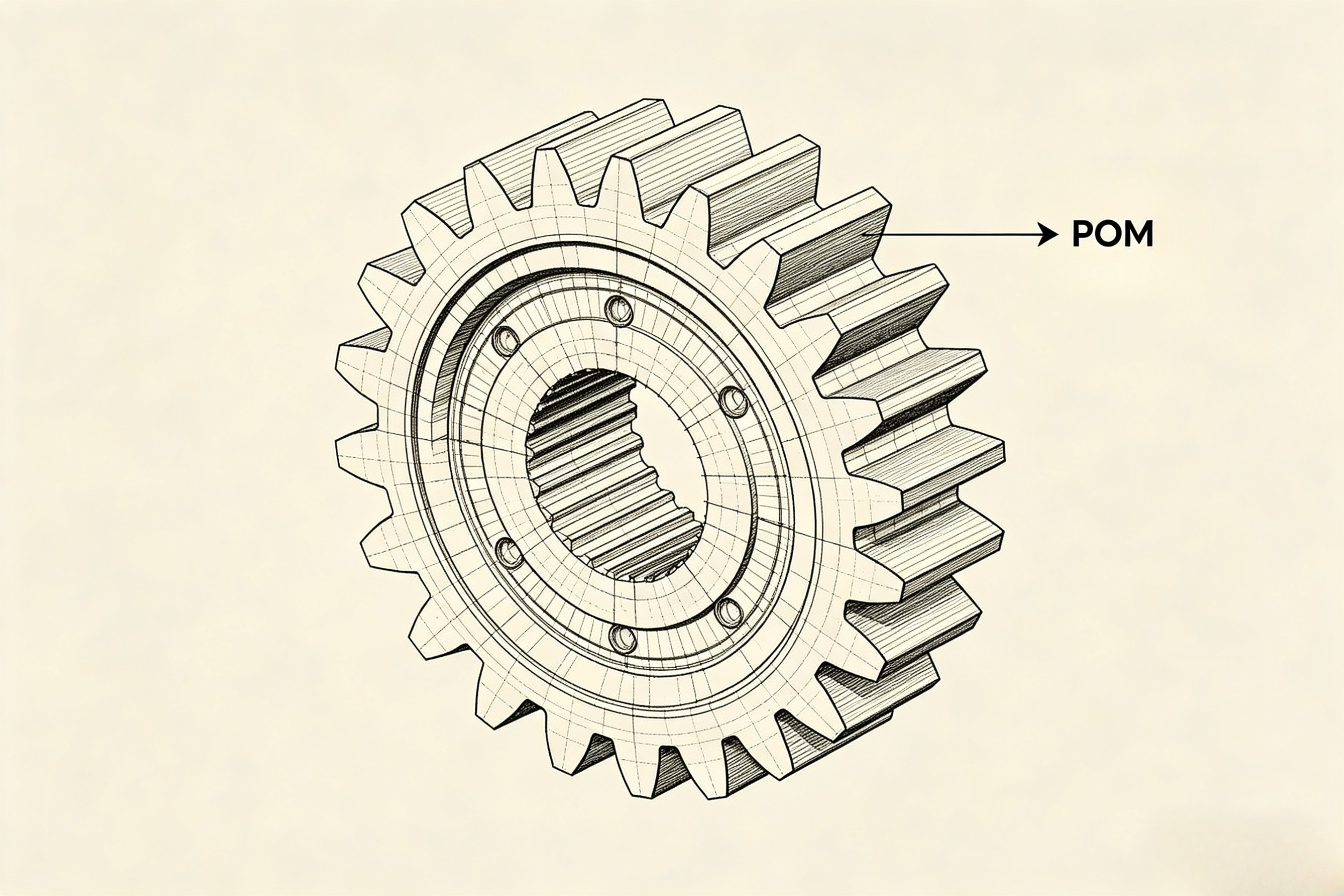

Wohua Recommendation: For precision gears → POM. For high-load bushings → PA66 + oil-filled grade.
2. High-Temperature Environments (e.g., under-hood parts, SMT fixtures, heat exchangers)
Scenarios: Continuous exposure to 120–260°C, sometimes with brief peaks.
Requirements: High HDT (Heat Deflection Temperature), oxidation resistance, creep resistance at temperature.
| Material | Max Continuous Use | Pros | Cons |
|---|---|---|---|
| PPS | 220–240°C | Chemical resistance, inherent flame retardancy | Brittle without fillers |
| PEI (Ultem™) | 170–210°C | High strength, good dielectric properties | Higher cost |
| PA9T / PA46 | 150–200°C | Good for high-temp automotive connectors | Moisture sensitive |
Wohua Recommendation: For SMT sockets → PEI. For under-hood fluid handling → PPS (glass-filled).
3. Chemical & Corrosive Environments (e.g., pumps, valves, chemical storage)
Scenarios: Contact with acids, alkalis, fuels, solvents, or salt spray.
Requirements: Low swelling, no stress cracking, broad chemical resistance.
| Material | Chemical Resistance | Suitable Media |
|---|---|---|
| PPS | Excellent (acids, bases, solvents, fuels) | Nearly all except strong oxidizing acids |
| PVDF | Outstanding for chlorinated/acidic media | Halogenated fluids, ultrapure water |
| PEEK | Universal (except concentrated sulfuric/nitric) | Extreme chemical + thermal combo |
| PP | Good for weak acids/bases | Not for organics or high heat |
Wohua Recommendation: For general chemical pumps → PVDF or PPS. For high-temp + chemical → PEEK.
4. Electrical & Electronic Applications (e.g., connectors, insulators, enclosures)
Scenarios: High voltage, high frequency, or EMI-sensitive assemblies.
Requirements: High dielectric strength, CTI rating, low moisture absorption.
| Material | Dielectric Strength (kV/mm) | CTI Rating | Flammability |
|---|---|---|---|
| PC (Polycarbonate) | ~16 | 250–400 | V-2 / V-0 with FR |
| PBT | ~18 | 200–350 | HB to V-0 |
| LCP | ~20 | 150–250 | V-0 inherently |
| PEI | ~28 | 400+ | V-0 inherently |
Wohua Recommendation: For high-CTI power connectors → PEI. For thin-wall SMT components → LCP.
5. Medical & Food Contact Applications
Scenarios: Implants (short-term), surgical tools, food processing equipment.
Requirements: ISO 10993 or FDA 21 CFR, sterilizable (autoclave, EtO, gamma).
| Material | Approvals | Sterilization | Typical Use |
|---|---|---|---|
| PPSU | FDA, ISO 10993 | Autoclave, gamma | Reusable surgical handles |
| PET | FDA | Gamma, EtO | Trays, blister packaging |
| PEEK | ISO 10993, USP Class VI | All methods | Spinal cages, dental tools |
Wohua Recommendation: For autoclaved devices → PPSU. For implantable → medical-grade PEEK.
Conclusion
Engineering plastic selection must balance thermal, mechanical, chemical, and regulatory factors. Wohua Plastics provides full data sheets and application testing support to validate material choices before production.
